UBERTI 1851/1861 NAVY; CONVERSIONS; 1871/1872 OPEN TOP GRIPS ~ JOHN WAYNE ADI

Arizona Custom Grips

UBERTI 1851 & 1861 Navy;

also 1871
& 1872 Navy Open Tops

~ and
all similar revolvers derived from these made by Uberti
and imported by Cimarron, Taylors & Co., Navy Arms, Stoeger, etc. ~

 (see below for details)

~ Exclusive
~

  MAGNA-TUSK™

JOHN WAYNE FINGERGROOVE STYLE

Aged DISTRESSED IVORY GRIPS

Hand cut in the
famous John Wayne Fingergroove style featured in many of his most famous
Westerns, such as True Grit, The War Wagon, The Cowboys, and Rooster Cogburn.  These grips are made out of our exclusive
Magna-Tusk™ Ivory, then aged to perfection -- the highest quality grips of
their type ever available.   An exclusive
of Arizona Custom Grips.

Milled out of a solid block of
Magna-Tusk, denser and heavier than regular Ivory or Stag.  See below for details.

~~~~~

two-PIECE
(with SCREWHOLE) STYLE grips

THIS LISTING IS FOR OUR
TWO-PIECE (SCREWHOLE) STYLE GRIPS

********

ONE-PIECE VS. TWO-PIECE STYLE GRIPS EXPLAINED:

Note: One-Piece style grips do not have a visible
screw but instead use an internal spacer to mount the grips.  Two-Piece style grips incorporate a visible
screw, allowing easy and quick removal for cleaning or maintenance of your
revolver.  We manufacture both
types.  Both styles of our grips will
interchange and work on either style of grip frame, no matter how your revolver
is currently set up.  Both styles are
traditional and historical designs and both were originally used on early
Colts, so whichever style you choose is really a matter of personal
preference.

One-Piece
style grips (i.e., grips with no visible screwhole in the grips) incorporate a spacer
(included with the grips) which is user mounted to the inside of the grip
panels to hold them in place instead of a using a screw.  To ensure optimum fit and best performance, the
spacer is sent unmounted since all gripframes vary slightly in inside
dimensions.  Installation is simple and generally
takes only a few minutes.  Illustrated instructions
included with each order.  This results
in a rock-tight fit, without the need of a screw.  One-Piece grips are preferred by many
collectors for their clean lines and traditional look, and are seen on many
early Colts. Once mounted, they are fully removable by removing the three
backstrap screws, and will not alter your revolver in any way.  Reinstallation is in reverse order.

Alternatively, our Two-Piece style
grips (i.e., grips with a visible screw) offer the superior convenience of
quick grip removal using only the screw (also included with the grips).  Our Two-Piece style grips also include our
proprietary Conversion Kit, allowing
their use on revolvers that do not have a grip pin in the frame (as is the case
with most Italian-made revolvers and others that currently have a one-piece
style grip).  The Conversion Kit replaces
the need for a grip pin and is actually a stronger design, and allows the grips
to lock up tight on the frame, allowing no movement.  This
requires no modification to your revolver.
Two-piece grips give you the advantage of easier access to your revolver
for cleaning and maintenance, while preserving the integrity of your revolver
in original factory condition. Two-Piece style grips were also used
on many of the early Colts, and are a traditional and iconic historical design,
offering a distinctive look and convenience preferred by many shooters and collectors.

Fully
illustrated, easy-to-follow mounting instructions are included with every order.

Rev
23122871

~~~~~

The legendary Colt 1851 Navy, a 36 Caliber Cap & Ball
revolver designed by Samuel Colt, was manufactured in Hartford, CT starting in
the 1850s and continuing on up into the 1870s.
After a long production run of over 250,000 units, it was superseded by
the metallic cartridge firing Colt 1873 Single Action Army, which like the ’51 Navy
gained a legendary status of its own.

To many, the outstanding handling qualities and the size and
shape of the Navy grip frame (and the later 1873 Army which was a close copy of
the Navy) was and is unsurpassed, even by today’s standards.  These “plowhandle” gripframes are deemed by
many to result in the most naturally pointing revolvers ever designed.  With an elegant and svelte profile, the ’51
Navy grip frame facilitates ultra-fast handling, and rapid, instinctive
aiming.  It was the preferred sidearm by
many seasoned gunfighters of the Old West, most notably Wild Bill Hickock who
was known to always carry a brace of Navys in his belt.  Bringing the Navy revolver into quick action
by experienced gunmen was more of an exercise in instinctual tactile feel, rather than the slower deliberation and careful aiming necessary with some
lesser designs.

WHAT
THESE WILL FIT

(Please read the following
section in its entirety!)

These grips WILL FIT the following Uberti Cap & Ball revolvers
and their derivatives (such as the “Open Tops” and “Conversions”), which have
the standard 3-1/8” tall gripframe:

- 1851 Navy Percussion (Cap &
Ball)-

- 1851 Navy Conversion-

- 1851 Navy Open Top -

- Richards-Mason 1851 Navy Conversions
–

- C. Mason 1851 Navy Conversions –

- Man With No Name 1851 Navy
Conversions -

- 1861 Navy Percussion (Cap &
Ball) -

- 1871 Navy Open Tops-

- 1872 Navy Open Tops –

- Leech & Ridgon (CSA 1851 Navy) –

- and other similar Uberti designs
using the 3-1/8” tall gripframe –

PLEASE NOTE: Uberti makes an 1860 Army sized
revolver which has a similar appearance to the ’51 Navy.  However, the 1860 Army gripframe is around
3-3/8” tall, so 1860 Army grips are not interchangeable with the ’51 Navy.  Please check your
grip frame measurement prior to ordering.  These grips will ONLY fit the Navy sized
gripframes (which are around 3-1/16” to
3-1/8” tall, depending on how you hold your ruler or caliper).  If you have the taller (3-3/8”) 1860 Army sized grip
frame, please check our store for Uberti 1860 Army grips, or send us an email
if you cannot find what you need and we will be happy to help.

UBERTI FRAME
VARIATIONS -- IMPORTANT!

*PLEASE NOTE: Over the years Uberti has used multiple variations of gripframes on
their revolvers, with several profile differences and different fitting
requirements, and they are NOT interchangeable although they LOOK similar.  To ensure that we get you the correct grips,

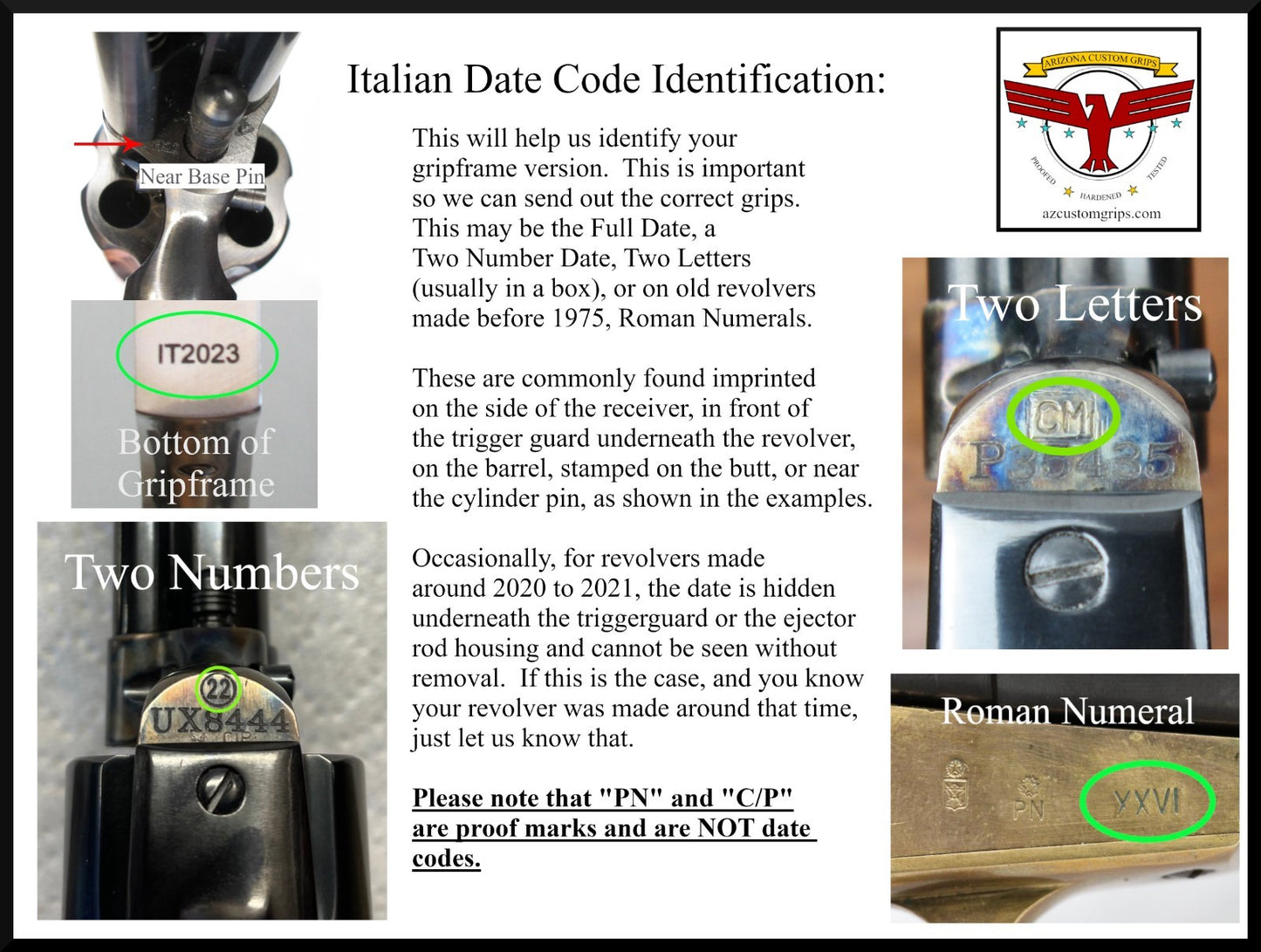

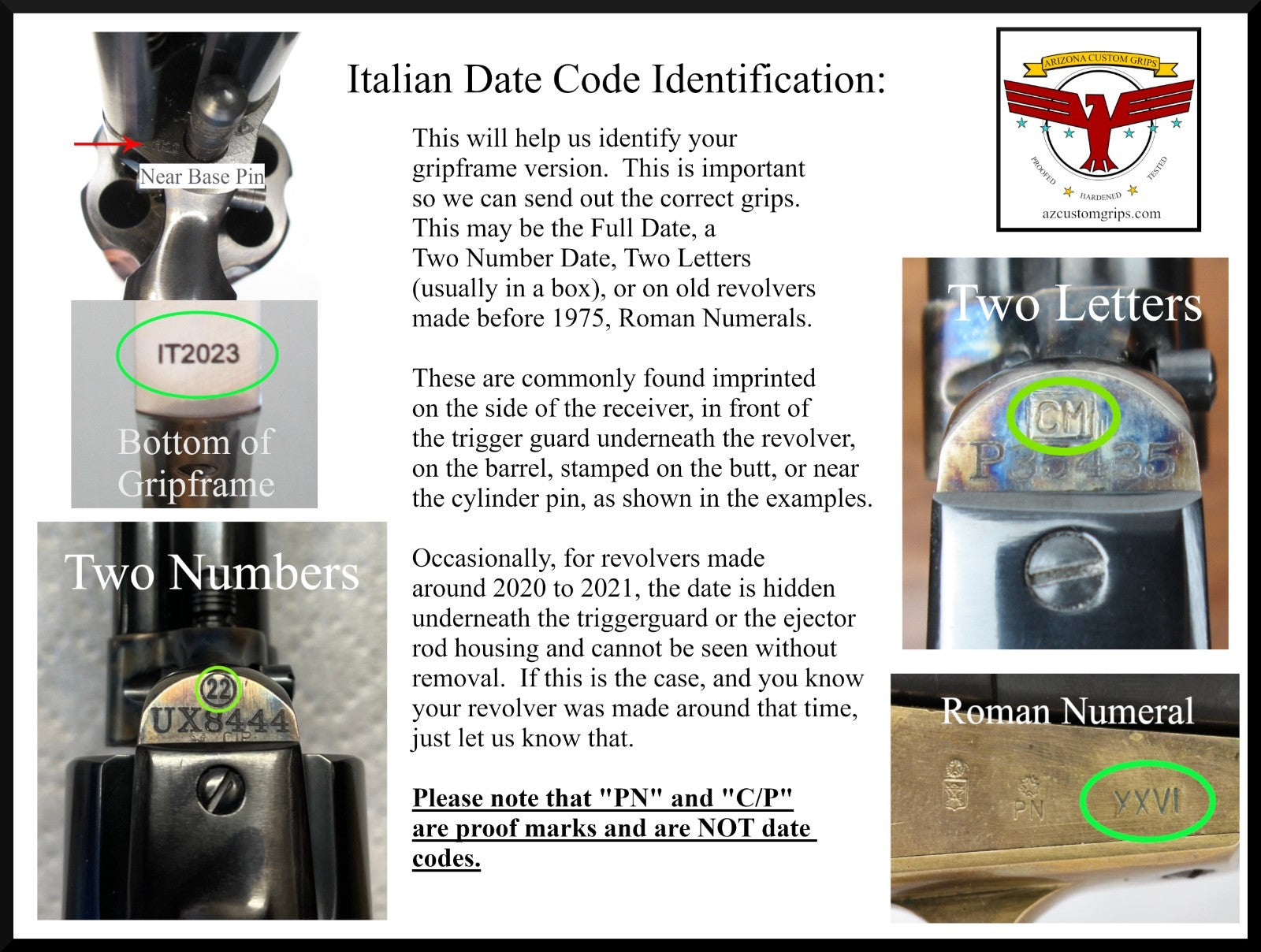

we need to determine the date of manufacture of your revolver.  When ordering, please check your revolver for
a two-digit date code inside a small rectangular box (as shown in the second
picture in this listing), or on older revolvers made prior to 1975 a set of
Roman numerals (e.g., “XXX”, “XXIV”, etc.).
On some of the more current revolvers, there is a two-digit number
(e.g., “21”) inside a circle, or sometimes you will find an actual date stamp
(e.g., “2022”).  If found, when ordering
the grips please attach a message to your order and send us the date code.  If after a careful inspection you find that
your revolver does not have the code (which a few of the newer revolvers do
not), please let us know that you have a recent model and send the first three
digits of your serial number.

If we do
not hear from you we will send the most common current version in order to get
the order out within the required time parameters.

Rev.
23122831

What these will NOT fit:

Please note that these will NOT fit revolvers made by Colt, Pietta,
Army San Marco, or any other manufacturer.
Please check and make sure your revolver was made by Uberti prior to
ordering.  Cimarron, Taylors & Co.,
or EMF, etc., are importers and buy from various manufacturers, including
Uberti.  But Uberti’s name should be
found somewhere on the revolver.

Rev. 07282300

A note on the Italian-produced
Revolvers:

The
Italian firms, located in Northern Italy, have been making SAA style revolvers
now for well over a half century, and have made numerous makes and models and
grip frame profiles with varying configurations over the years.  We have an in-depth knowledge of the
differing grip configurations, have a large library of gripframe variations
from the various makers both old and new, and have vast experience making grips
for Uberti, Pietta, as well as the other Italian gunmaking firms.   Our experienced makers go to great lengths
to ensure an exacting fit, including utilizing modern precision CNC production
techniques, as well as incorporating old-time hand tuning and hand checking the
fit of every grip on our reference frames prior to leaving our factory.  We have a long list of many satisfied
customers in the shooting industry who have purchased grips to use in a wide
variety of applications, and we can safely and confidently guarantee proper fit
and finish to your complete satisfaction.

Rev. 11202000

Arizona Custom Grips

About our exclusive Magna-Tusk™ “Hi-Grade”
Ivory and Stag Grips:

Magna-Tusk™ Ivory and Stag grips, an
exclusive of Arizona Custom Grips, are manufactured out of our
super high-grade, ultra-high density material developed exclusively for our
premium grip production.  Vastly superior to standard bonded ivory or
stag found on factory and other aftermarket grips, Magna-Tusk™ is capable of
withstanding the heaviest recoil and impact, and is the toughest alternative grip
material available today, while still retaining the pristine look of real ivory
or stag.  It is completely rock-solid, stable, and water, chemical,
and oil resistant.  It is flame and heat resistant, and is entirely
void-free, with over 10x the strength, durability, and impact resistance of
alternative materials.  Unlike with real ivory or stag, there is no
routine care and maintenance involved, with no danger of it drying out and
cracking if not maintained properly or if left in the heat.  It is
filled with premium natural and synthetic compounds to produce outstanding
aesthetic properties and mechanical performance.  When aged with our
exclusive aging process, it takes on the equivalent of a 100-year-old patina,
with subtle grain details which many experts cannot tell apart from the real
thing.  In addition, the material has a fine grain structure, which
holds intricate detail for carvings, artistic relief work, etc., found on many
historic grips.

About Our Aging Process:

Unlike
the lightweight artificial yellow plastic materials sometimes offered for sale,
Magna-Tusk aged grips start out as a solid block of white virgin Magna-Tusk
Ivory.  Grip blanks are then milled from
this premium material, incorporating both CNC techniques for blanking and
finishing techniques similar to those used in manufacturing the originals.  They are then carefully aged with our
exclusive aging process, incorporating concentrated UV light (the essential
aging property in natural sunlight).

Our process produces an authentic appearance and genuine patina
which extends into the surface, just like real ivory or stag.  Not only does this
give it the appearance of authenticity and depth, but this surface will not
chip, crack, or peel like a superficially applied coating.  Accept no substitutes.  With Magna-Tusk aged grips, most experts cannot tell them apart
from a decades-old or even a centuries-old original.  While the quality difference is somewhat
noticeable in the photos, the difference is even more apparent when seen and
handled in person.  Many of our repeat
sales are made by the very customers we sell to, who take their custom-stocked
revolvers to the range or club, where the quality difference is immediately
seen and appreciated by fellow shooters.

Magna-Tusk grips have all the authenticity of the originals, with
several improvements over original materials including increased durability,
and are made to last a lifetime.  They
feature subtle but authentic color mottling, grain variegation, and other
authentic minute details found on original old Ivory and aged Stag, as seen on
many of the revolvers which belonged to gunfighters and lawmen of the Old
West.  Dense, heavy, and solid, Magna-Tusk grips are in a class all their
own. With our exclusive aging process, these grips
are outstanding right out of the box, and will continue to improve over
time.  The more these grips are handled
and used, the better they look!

030120

Grip screw included
with all grips.

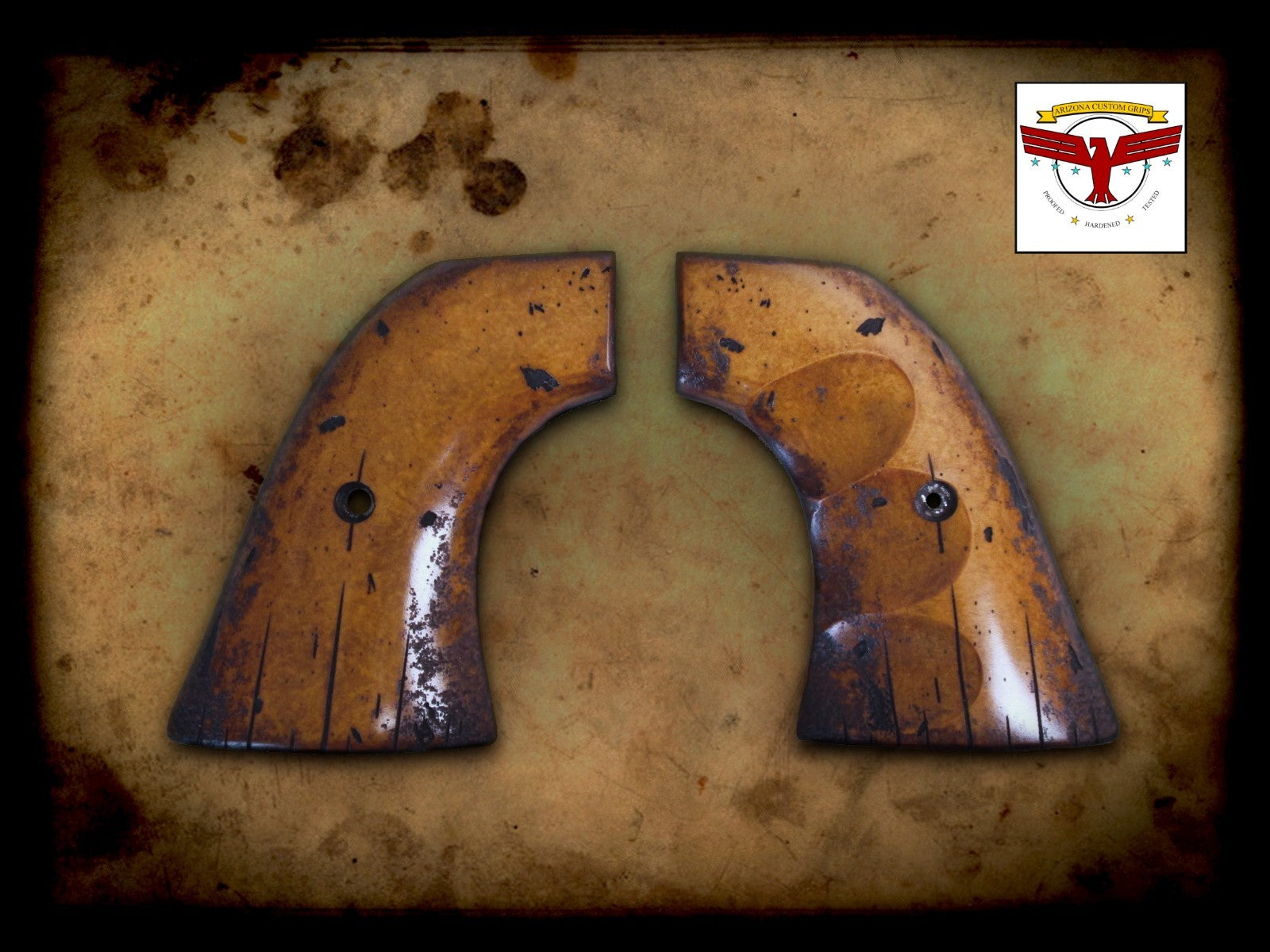

The photo used is a stock photo (a sample
pair).  Yours will appear similar to these.

Customer
satisfaction is important to us – Full money back, less shipping, if not fully satisfied!!
