UBERTI SAA BLACK IVORY GRIPS 1P MG TUSK Cattleman Evil Roy El Patron Smoke Wagon

Arizona Custom Grips

UBERTI SAA

(1873 SINGLE ACTION ARMY STYLE REVOLVERS)

~ Exclusive ~

  MAGNA-TUSK™

Black ivory GRIPS

Milled out of a solid block of Magna-Tusk,
denser and heavier than regular Ivory or Stag.
See below for details.

~~~~~

oNE-PIECE
(nO SCREWHOLE) STYLE grips

THIS LISTING IS FOR OUR
ONE-PIECE (NO SCREWHOLE) STYLE GRIPS

********

ONE-PIECE VS. TWO-PIECE STYLE GRIPS EXPLAINED:

Note: One-Piece style grips do not have a visible
screw but instead use an internal spacer to mount the grips.  Two-Piece style grips incorporate a visible
screw, allowing easy and quick removal for cleaning or maintenance of your
revolver.  We manufacture both
types.  Both styles of our grips will
interchange and work on either style of grip frame, no matter how your revolver
is currently set up.  Both styles are
traditional and historical designs and both were originally used on early
Colts, so whichever style you choose is really a matter of personal
preference.

One-Piece
style grips (i.e., grips with no visible screwhole in the grips) incorporate a spacer
(included with the grips) which is user mounted to the inside of the grip
panels to hold them in place instead of a using a screw.  To ensure optimum fit and best performance, the
spacer is sent unmounted since all gripframes vary slightly in inside
dimensions.  Installation is simple and generally
takes only a few minutes.  Illustrated
instructions included with each order.
This results in a rock-tight fit, without the need of a screw.  One-Piece grips are preferred by many
collectors for their clean lines and traditional look, and are seen on many
early Colts. Once mounted, they are fully removable by removing the three
backstrap screws, and will not alter your revolver in any way.  Reinstallation is in reverse order.

Alternatively, our Two-Piece style
grips (i.e., grips with a visible screw) offer the superior convenience of
quick grip removal using only the screw (also included with the grips).  Our Two-Piece style grips also include our
proprietary Conversion Kit, allowing
their use on revolvers that do not have a grip pin in the frame (as is the case
with most Italian-made revolvers and others that currently have a one-piece
style grip).  The Conversion Kit replaces
the need for a grip pin and is actually a stronger design, and allows the grips
to lock up tight on the frame, allowing no movement.  This
requires no modification to your revolver.
Two-piece grips give you the advantage of easier access to your revolver
for cleaning and maintenance, while preserving the integrity of your revolver
in original factory condition. Two-Piece style grips were also used
on many of the early Colts, and are a traditional and iconic historical design,
offering a distinctive look and convenience preferred by many shooters and collectors.

Fully
illustrated, easy-to-follow mounting instructions are included with every order.

Rev
23122871

~~~~~

WHAT THESE WILL FIT

(Please
read this entire section carefully, including the “WILL NOT FIT” section, in
order to make sure you get the correct grips):

These WILL FIT any of the UBERTI Single Action Army style revolvers, with the standard sized SAA “plowhandle” grip frame, which measures around
3-1/16” to 3-1/8” tall, depending on how you hold your ruler, tape, or caliper.

This includes any of the following (all of which are made by Uberti
and imported by Cimarron, E.M.F., Taylor’s & Co., Stoeger, etc.).  Please email if you cannot find your
particular revolver.

●  Cimarron
Uberti revolvers:  Buntline; Cattleman; Cattleman II; Chisholm; Desperado; El Patron; Evil Roy; Frisco; Holy Smoker; Hombre; Horseman; Cimarron Model P and Model P Jr.; New Sheriff; Old West; Pistoleer; Rooster Shooter; Short Stroke CMS Pro; Short Stroke SASS Pro; Thunderstorm
and Thunderstorm CM; US Military Models (Custer 7^th
Cavalry,  U.S. Cavalry Scout, and U.S.V. Artillery); Wyatt Earp Buntline, and Wyatt
Earp Cody;

●  Taylor’s
& Co. Uberti revolvers:  Cattleman (NOTE: these will NOT fit the Cattleman .44 Mag which uses the larger
3-3/8” gripframe – see below); Cattleman
12-Shot; Devil Anse; Drifter; Gambler; Old Randall; Outlaw Legacy; Ranch Hand; Runnin’ Iron;
Smoke Wagon; Taylor Gambler; and Taylor
Marshall.  (Note: these grips will NOT fit the Taylor’s Gunfighter or Gunfighter
Defender, both of which use the larger 3-3/8” gripframe – see below);

●  Will
also fit Stoeger’s Uberti 1873 SAA revolvers; the E.M.F. Dakota II or Dakota III; the American Arms Regulator;

●  or
any other Uberti SAA style revolver with
the standard sized (3-1/16” to 3-1/8” tall) plowhandle style grip frame.

Note: If you do
not see your revolver listed, please drop us an email with your model name and
we will verify your revolver.

UBERTI GRIPFRAME
VARIATIONS -- IMPORTANT!

→  PLEASE
NOTE!!   Over the years Uberti has used multiple
variations of gripframes on their SAA style revolvers, and each uses a slightly
different grip profile.  It can get a
little confusing.  In order for us to
ensure that you get the proper Uberti grips, please attach a note to your order
with the following information:

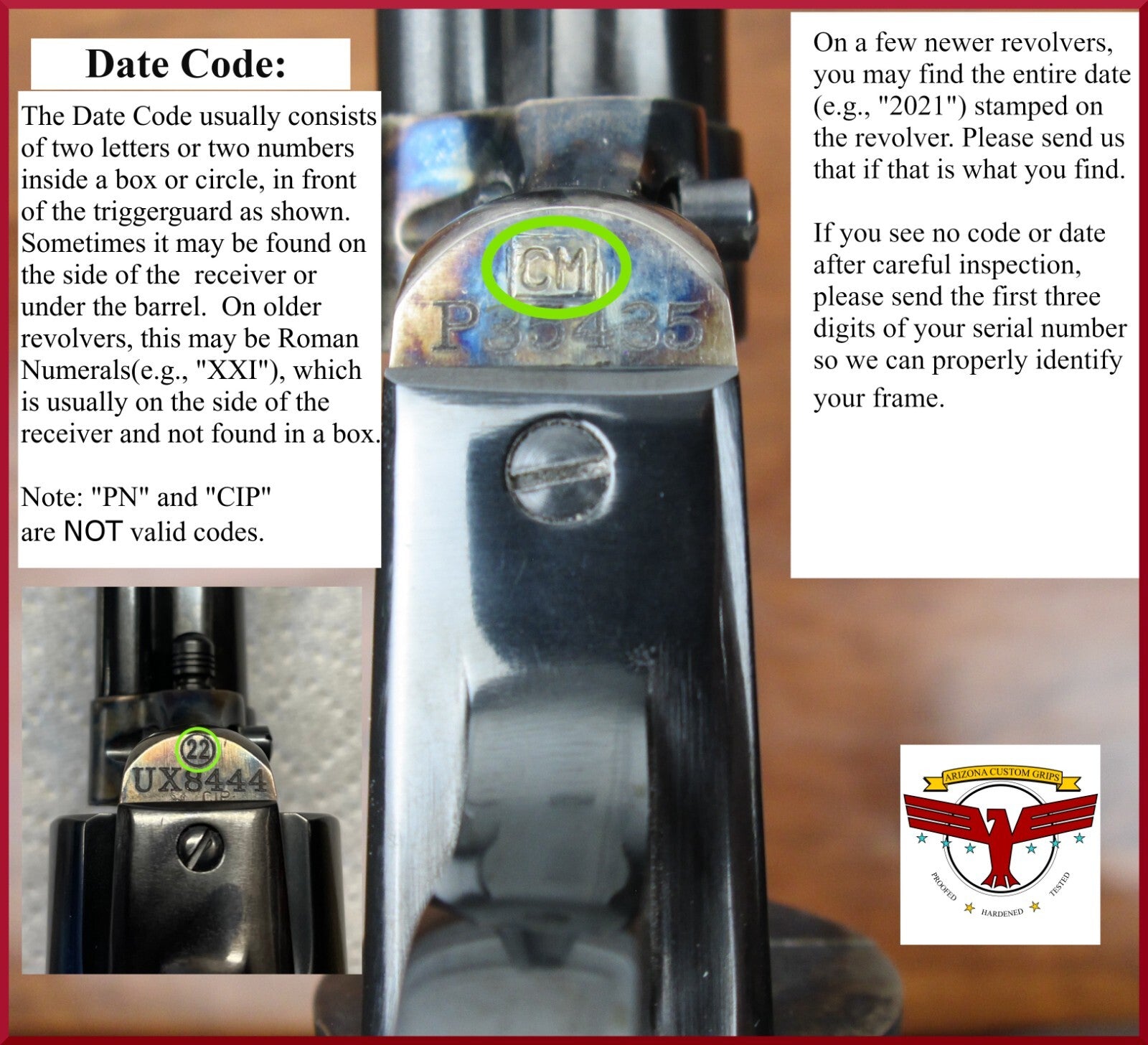

IF your revolver has a two-digit date code inside
a small rectangular box (as shown in the second picture in this listing), OR if
your revolver alternatively is marked with Roman numerals (i.e., “XXX” or
“XXIV”), please attach a note to your order with that code so we can identify
your gripframe.  Some of the newer
revolvers have the actual date stamped on the frame (i.e., “2022”), so if that
is the case please send that.

If after a careful
inspection you find that your revolver does not have the code (which some of
the newer revolvers do not), please send us the first three digits of the
serial number so we can properly identify your gripframe.

Please note that if
we do not hear from you, we will send the most common (current) grip in order
to get the grip out on time.

Note: “PN” and “CIP” are NOT valid codes.

What these WILL NOT FIT:

Please double check frame size:  These grips will only fit Uberti revolvers
having the standard sized SAA style gripframe (around 3-1/16” to 3-1/8” tall depending on how
you hold your ruler, tape, or caliper).
These WILL NOT fit Uberti gripframes that
are around 3-3/8” tall (such as Taylor & Co.’s Gunfighter or Gunfighter Defender, Taylor’s Cattleman 44 Mag., Cimarron’s Bad
Boy, the El Patron Grizzly Paw,
the Uberti Callahan, etc).
Please check your revolver
carefully before ordering.  If
you have one of these taller frames, our Uberti 1860 Army “Conversion &
Metallic Cartridge” grips will fit these revolvers.  You can locate these in our store.

.22 Stallion Revolvers:  Please note that these will NOT fit the .22 Caliber Uberti
“Stallion” revolvers, which use a smaller grip.
Please contact us if you have a .22 Stallion so we can supply the proper
grips.

Non-Uberti makers and other grip shapes:  These WILL NOT FIT any revolvers from other makers (such as
Pietta, Armi San Marco, Colt, Ruger, etc.).
Also, these will NOT fit revolvers using a gripframe that is not
the standard “plowhandle” shape, such as the Bisley, the Birdshead, the
Thunderer, Thunderball, or the Lightning style gripframes, nor any of the
Remington style revolvers such as the 1858, 1875, or 1890.  These use an entirely
different gripshape.  Please take a
careful look at the shape of your gripframe.
These are for the standard “plowhandle” style revolvers only.

Rev. 23120905

A note on
the Italian-produced Revolvers:

The
Italian firms, located in Northern Italy, have been making SAA style revolvers
now for well over a half century, and have made a huge number of makes and
models and grip frame profiles with varying configurations over the years.  We have an in-depth knowledge of the
differing grip configurations, have a large library of gripframe variations
from the various makers both old and new, and have vast experience making grips
for Uberti, Pietta, Armi San Marco, and the other Italian gunmaking firms.   Our experienced makers go to great lengths
to ensure an exacting fit, including utilizing modern precision CNC production
techniques, as well as incorporating old-time hand tuning and hand checking the
fit of every grip on our reference frames prior to leaving our factory.  We have a long list of many satisfied
customers in the shooting industry who have purchased grips to use in a wide
variety of applications, and we can safely and confidently guarantee proper fit
and finish to your complete satisfaction.

For an additional
charge, custom fitting is an option.
Please contact us for further details if you are interested in custom
fitting.

Rev. 07132300

Arizona Custom Grips

About our exclusive Magna-Tusk™ “Hi-Grade” Ivory Grips:

Magna-Tusk™ Ivory grips, an exclusive of Arizona
Custom Grips, are manufactured out of our super high-grade, ultra-high
density Ivory material developed exclusively for our premium grip
production.  Vastly superior to standard
bonded ivory found on factory and other aftermarket Ivory grips, Magna-Tusk™ is
capable of withstanding the heaviest recoil and impact, and is the toughest
alternative ivory material available today, while still retaining the pristine
look of real ivory.  It is completely
rock-solid, stable, and water, chemical, and oil resistant.  It is flame and heat resistant, and is entirely
void-free, with over 10x the strength, durability, and impact resistance of
alternative materials.  Unlike with real
ivory, there is no routine care and maintenance involved, with no danger of it
drying out and cracking if not maintained properly or if left in the heat.  It is filled with premium natural and
synthetic compounds to produce outstanding aesthetic properties and mechanical
performance.  When aged with our exclusive
aging process, it takes on the equivalent of a 100-year-old patina, with subtle
grain details which many experts cannot tell apart from the real thing.  In addition, the material has a fine grain
structure, which holds intricate detail for carvings, imitation stag, etc.,
found on many historic grips.

Grip screw included with all grips.

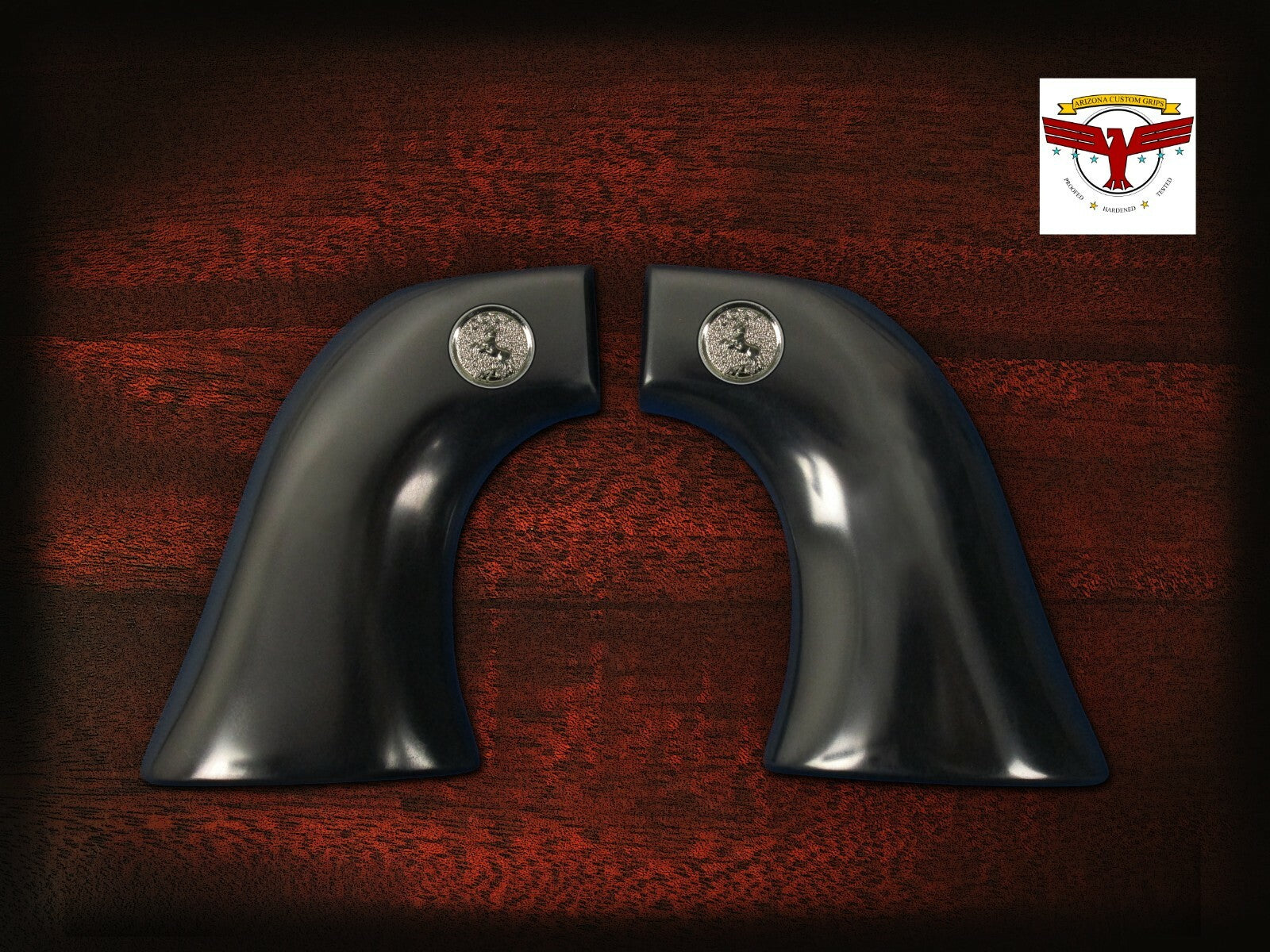

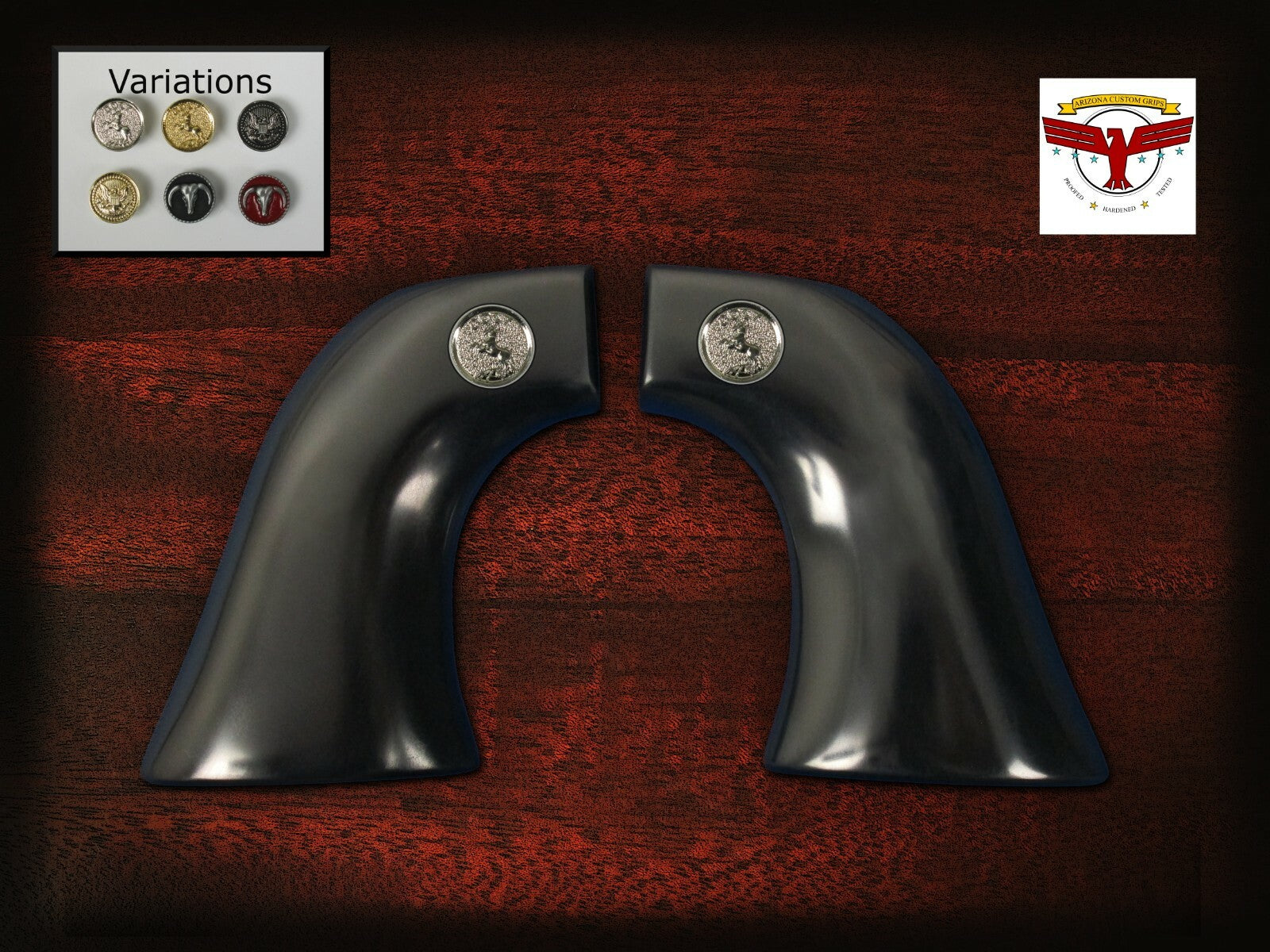

The photo used is a stock photo (a sample pair) as
we carry an assortment of this style grip.  Yours will appear similar to
these.

Customer
satisfaction is important to us -- Full Money Back, less shipping, if not fully
satisfied for any reason!  Thanks!!
